Boards that ride the vehicle, not the desk
Vehicle electronics live on a rail, not a wall socket: 12V or 24V that dips when the engine cranks, heat that climbs behind the dash, and no one to press the restart button. The boards below take that power directly — whole-vehicle tolerance class per the datasheet — and keep talking over CAN and cellular.
DC 9–36V · CAN · 4G/5G B-KEY · AMT · −20/+60°C
On The Vehicle
Four things on-board electronics must survive
- Vehicle-tolerant power: the AD600Z3AW and TL500Z3AW accept DC 9–36V — 12V and 24V buses connect directly, with a through-wall Phoenix terminal option on the TL500Z3AW.
- Data buses: the AD600Z3AW carries CAN alongside six COM; the TL500Z3AW splits six COM into a mixed RS485/RS232 farm — sensors, meters and the driver HMI share one board.
- Keep talking on the move: the AD600Z3AW adds a B-Key slot with SIM for 4G/5G failover — position, diagnostics and media continue over cellular.
- Wide temperature: all three boards run −20 to +60°C operating — dashboards, engine bays and outdoor transit enclosures are within the stated range.
Recommended Models
Three boards for the moving fleet
Power inputs, buses and temperatures are quoted from the model pages — no certification language beyond what the datasheets state.

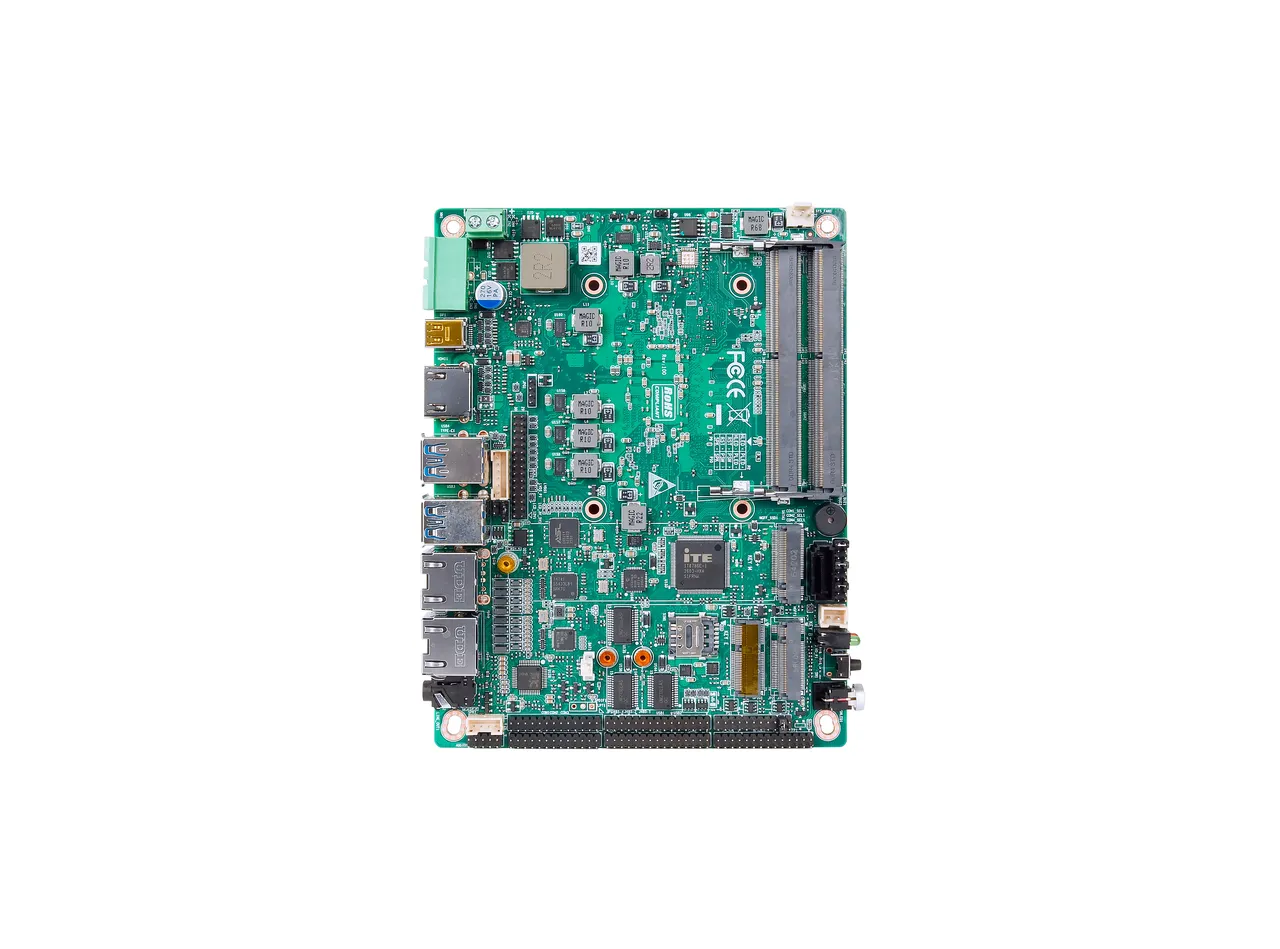

AD600Z3AW
Core 12th/13th Gen · 28W
DC 9–36V, CAN + LPT + PS/2, AMT, B-Key 4G/5G with SIM, six COM.
Why: direct 9–36V rail feed with CAN and cellular failover — whole-vehicle tolerant power per the datasheet.
View →
TL500Z3AW
Tiger Lake-U · 6305U–i7-1165G7
DC 9–36V 90W, six COM mixed RS485, LPT/PS/2/SPDIF, 2.5G + AMT, watchdog.
Why: through-wall Phoenix terminal and 9–36V input suit hard-wired 12/24V installations; watchdog covers unattended units.
View →

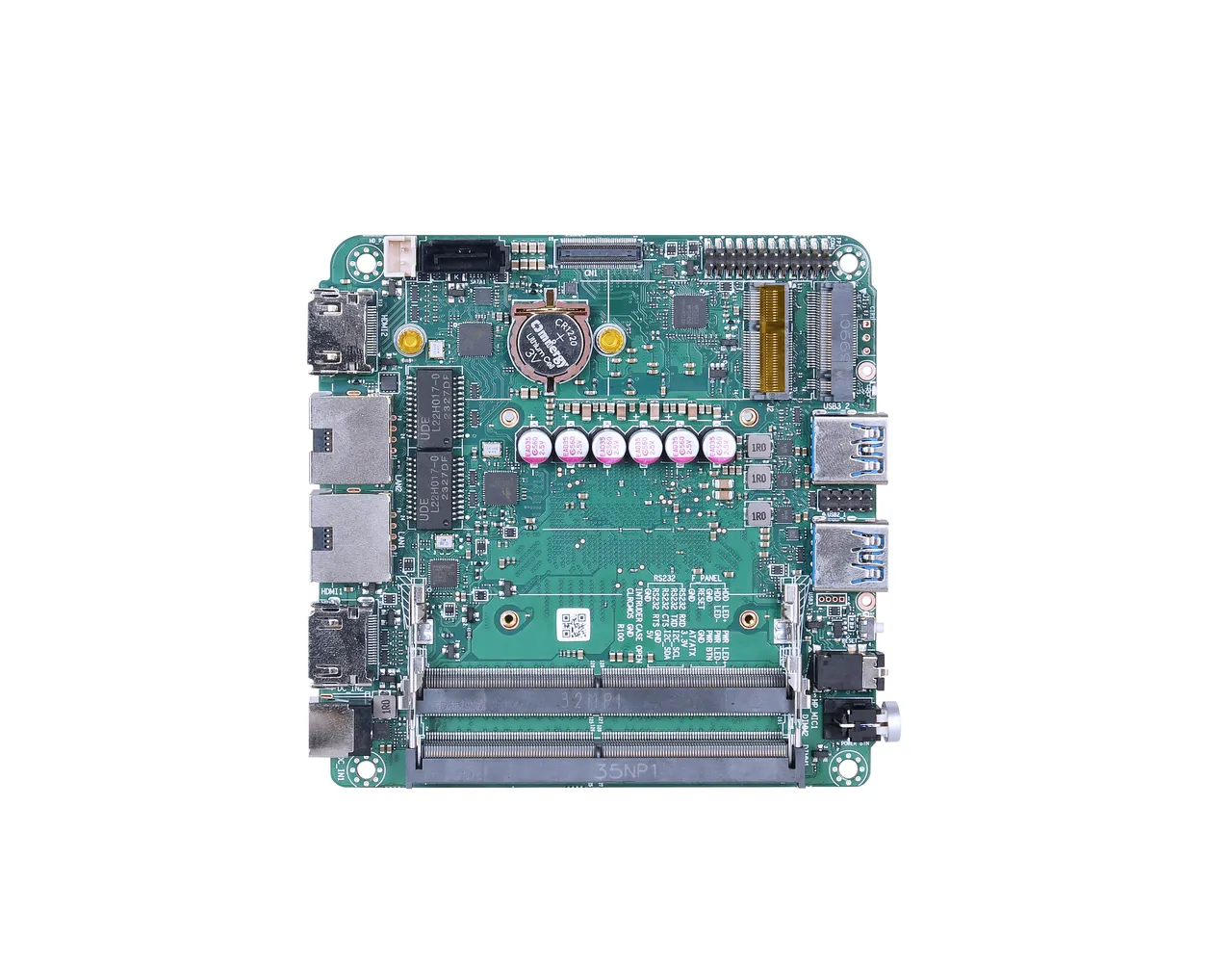

PX700CA
Ryzen 6000/7000 · 35W
DDR5 64GB, 2× HDMI 4K + 2× Type-C DP 8K, dual 2.5G, DC 12–19V.
Why: on-board display compute for information screens; run it off a regulated 12V feed where the rail sags.
View →Vehicle-Fit Checklist
Match the ride, then the board
Typical on-board requirements against the datasheet fields of the three recommended models.
| Vehicle Requirement | Datasheet Field | On Board |
|---|---|---|
| 12V / 24V rail feed | DC 9–36V direct | AD600Z3AW · TL500Z3AW (PX700CA: DC 12–19V regulated) |
| Cabin temperature | −20/+60°C operating | AD600Z3AW · TL500Z3AW · PX700CA |
| Field data bus | CAN | AD600Z3AW |
| Serial to sensors and HMI | 6× COM, mixed RS485 | TL500Z3AW (AD600Z3AW: 6 COM) |
| Cellular backhaul | B-Key + SIM, 4G/5G | AD600Z3AW |
| Remote service | AMT management LAN | AD600Z3AW · TL500Z3AW |
| On-board display compute | 2× HDMI 4K + 2× Type-C DP 8K | PX700CA |
Questions
Transportation, answered
Yes — the TL500Z3AW and AD600Z3AW accept DC 9–36V, and the TL500Z3AW can be ordered with a through-wall Phoenix terminal instead of a DC jack for hard-wired 12V or 24V rails.
The AD600Z3AW adds a B-Key slot with SIM for 4G/5G failover, while the TL500Z3AW pairs dual LAN with an AMT management port for out-of-band service on parked or roving units.
None — no E-mark style approvals are claimed here. The boards are selected for objective fit stated on the datasheets: 9–36V input, −20/+60°C operation, CAN and cellular interfaces.
Model Matrix
Boards matched to transportation
Models whose published application notes and interface set fit this workload — pulled from the GEOLiNK specification sheets, with the CPU, panel output and power input that matter for the selection.
| Model | CPU | Display | Power |
|---|---|---|---|
| AD600Z3AW | Intel 12th / 13th Gen -U / -P Series processors (optional -U / -P / -H Series) TDP: 28W BIOS: EFI BIOS | 1 x HD2.1 1 x 24-bit LVDS (LVDS / eDP selectable) 1 x MiniDP Type-C (USB + DP) | Standard input: DC 9-36V |
| MSK-TL5003AW | Onboard Intel 11th Gen Tiger Lake-U series, EFI BIOS Optional CPU: Celeron 6305 / i3-1115G4 / i5-1135G7 / i7-1 | HD2.0 interface, supports 4096 x 2160 @ 60 Hz eDP | Standard input: DC 9-36V, 90W |
| PNM-5210 | Onboard Intel Twin Lake / Alder Lake series, TDP 15W BIOS: EFI BIOS Available CPU options: N150, N305 | 1× HDMI 2.0 interface, supports 3840 × 2160 @ 60Hz | DC 9 ~ 36V wide-voltage input |
| RP7003AW | **CPU**: Intel Core 12th/13th Generation -U/-P series **BIOS**: EFI BIOS | **Interfaces**: 1 × DP 1.4; 1 × HDMI 2.0; 2 × Type-C **Optional**: 1 × LVDS / EDP (optional) | **Input**: DC 9-36V **Power rating**: 120W |
| TL500Z3AW | Onboard Intel 11th Generation Tiger Lake-U Series Processor EFI BIOS CPU Options: Celeron 6305U / i3-1115G4 / | 1 × HDMI 2.0 1 × LVDS (LVDS / EDP selectable, one of the two) 1 × MiniDP (DP++) Dual-channel 24-bit LVDS / HDM | DC 9-36V, 90W Copper fan heatsink |
| UT1003AW | Intel Core Ultra-U/H series processors (U-15W, H-28W) EFI BIOS Optional CPU models: 135H / 125H / 125U / 165H | 1 x HDMI2.1 1 x DP2.1 1 x TYPE-C (supports 4K) 1 x 24-bit LVDS (LVDS / EDP, selectable one of two) | DC 9-36V (wide voltage input) |
Get A Quote
12V, 24V, no wall socket — that is the spec.
Tell us the bus voltage, the enclosure and the interfaces — we’ll confirm the board and the mounting options within 24–48 hours.
