Industry Route · Edge AI
Inference where the cameras are, not where the cloud is
Edge AI moves the model to the site: NVR rooms, camera cabinets, gateways at the network edge. The board needs compute class, an accelerator slot and a way to report back — the three models below quote those exact fields on their datasheets.
RYZEN AI 9 365 · CORE ULTRA · M.2 PCIE 5.0 · NVMe · 4G/5G BACKHAUL
At The Edge
Four things an inference node asks for
- AI-class compute: the HK800CA’s CPU field reads AMD Ryzen AI 9 365 — the Ryzen AI line for on-device inference at the node.
- Accelerator and storage bandwidth: the RP7003AW quotes an M.2 2280 slot on PCIe 5.0 x4; the TOP800B adds a PCIe 4.0 x4 slot beside its M.2 2280 PCIe 4.0 x4 NVMe.
- Big memory envelope: DDR5 96GB on the TOP800B and RP7003AW holds multiple models and large video buffers at once.
- Backhaul: B-Key with Micro-SIM on the TOP800B and a B-Key slot supporting 4G/5G or SSD on the RP7003AW keep sites talking over cellular.
Recommended Models
Three nodes for the inference fleet
CPU fields, slots and memory are quoted from the model pages — the AI-capability reading stops where the datasheet stops.

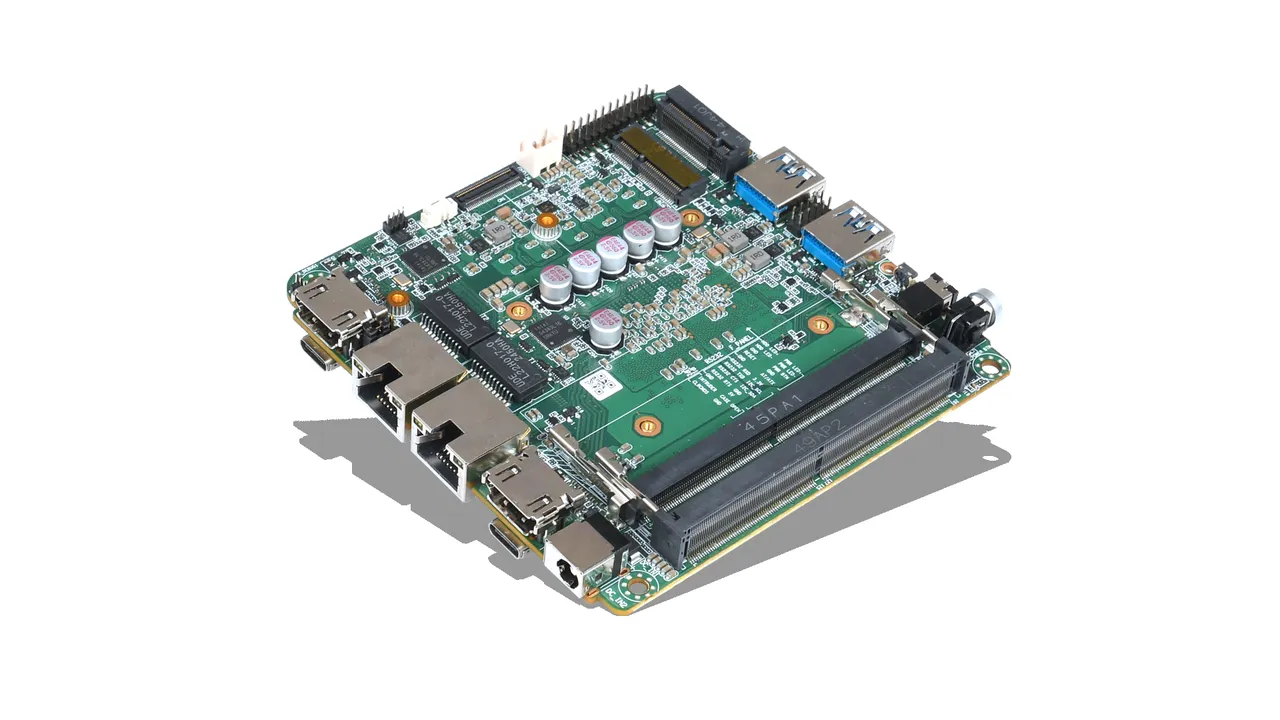

HK800CA
AMD Ryzen AI 9 365
DDR5 64GB, three 4K-capable outputs, dual i226-V 2.5G, M.2 NVMe.
Why: Ryzen AI 9 365 sits on the CPU field — the AI-class Ryzen platform for on-site inference nodes.
View →

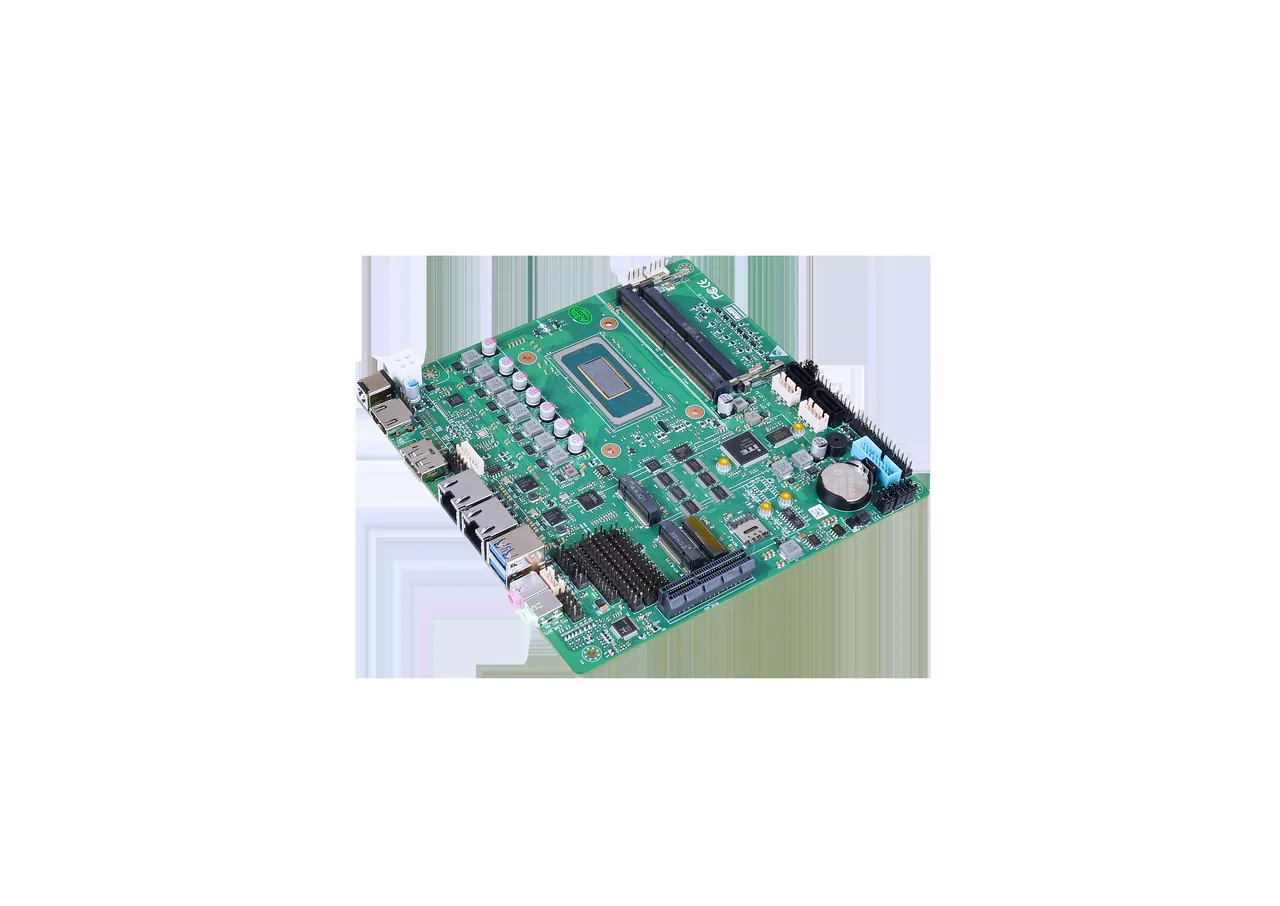

TOP800B
Core Ultra 5/7 · 28W
DDR5 96GB, HDMI 2.1 8K, PCIe 4.0 x4 slot, M.2 2280 NVMe, 4G/5G B-Key.
Why: PCIe 4.0 x4 slot plus M.2 2280 NVMe make an NVR/inference box with desktop-class headroom.
View →
RP7003AW
Core 12th/13th Gen · U/P
DDR5 96GB, M.2 2280 PCIe 5.0 x4, B-Key 4G/5G, 2× CAN, DC 9–36V.
Why: PCIe 5.0 M.2 bandwidth for accelerator cards and a 4G/5G B-Key for camera-site backhaul.
View →Deployment Flow
From model to running node
Four steps we walk with system integrators on edge AI roll-outs.
Model & workload
Inference type, batch size and latency budget — what runs on the node defines the CPU class.
Node sizing
CPU, DDR5 capacity and the accelerator slot — PCIe 4.0 or 5.0 M.2 — matched to the model.
Site power & link
DC input range for the cabinet; cellular backhaul slot for sites without a wired uplink.
Fleet rollout
Burn-in tested nodes, locked configurations and a remote service plan for each site.
Questions
Edge AI, answered
The HK800CA carries the AMD Ryzen AI 9 365 on its CPU field — the AI-class Ryzen platform — while the TOP800B runs Core Ultra 5/7 at 28W for desktop-class inference headroom.
The RP7003AW quotes an M.2 2280 slot on PCIe 5.0 x4; the TOP800B adds a PCIe 4.0 x4 slot beside its M.2 2280 PCIe 4.0 x4 NVMe.
The TOP800B carries a B-Key with Micro-SIM for 4G/5G, and the RP7003AW quotes a B-Key slot supporting 4G/5G or SSD — camera sites stay connected without a wired uplink.
Model Matrix
Boards matched to edge ai
Models whose published application notes and interface set fit this workload — pulled from the GEOLiNK specification sheets, with the CPU, panel output and power input that matter for the selection.
| Model | CPU | Display | Power |
|---|---|---|---|
| AD30NU | On-board Intel Alder Lake-N series Default N100, TDP 6W (optional N305, TDP 15W) UEFI boot support | 1 × HDMI 2.0, 4096×2160@60Hz (vertical connector) 1 × DP, 4096×2160@60Hz (vertical connector) | DC 12–19V, 30W |
| AD600NA | Onboard Intel Alder Lake-U / -P / -H series processor, TDP 28W Available SKUs: I3-1215U / I5-1235U / I5-12450H | 2 x HDMI2.0, supporting 4K@60Hz 1 x DP, supporting 8K@60Hz 1 x Type-C (DP 8K@60Hz + USB3.0) | DC 12-19V, 120W or above |
| AD600Z3AW | Intel 12th / 13th Gen -U / -P Series processors (optional -U / -P / -H Series) TDP: 28W BIOS: EFI BIOS | 1 x HD2.1 1 x 24-bit LVDS (LVDS / eDP selectable) 1 x MiniDP Type-C (USB + DP) | Standard input: DC 9-36V |
| AD742A | Onboard Intel Alder Lake-N series / Intel Twin Lake-N150 series Optional N100 / N305 / N150, with fan [optiona | 1 × HD2.0, 4K@60Hz 1 × LVDS/eDP (LVDS/eDP optional) | Standard input: DC 12V, 60W |
| AR200CA | Onboard Intel Core Ultra Arrow Lake series, TDP 28W Supported models (optional): Intel Core Ultra7 255H Intel | 2 x HDMI2.1, supports 4K@60Hz 2 x Type-C, supports DP 4K@60Hz and USB3.0 | DC 12-19V 90W and above |
| HK800CA | **Onboard AMD Ryzen AI 9 365** BIOS: EFI BIOS | 2 × HDMI2.0, supporting 3840 × 2160 @ 60 Hz 1 × Type-C, supporting 3840 × 2160 @ 60 Hz and USB3.0 | Input: **DC 12-19V** Power: **90W or above** |
| ITX660B | Supports Intel Core 12th Gen / 13th Gen-S / 14th Gen series processors, LGA1700 socket Chipset: H610 / Q670 (o | 2 × HDMI 2.1 interfaces, supporting 4096 × 2160 @ 60Hz 2 × DP 1.4 interfaces, supporting 7680 × 4320 @ 60Hz Su | DC 12-24V & 12V, 120W and above (two power specifications optional) |
| MSK-TL5003AW | Onboard Intel 11th Gen Tiger Lake-U series, EFI BIOS Optional CPU: Celeron 6305 / i3-1115G4 / i5-1135G7 / i7-1 | HD2.0 interface, supports 4096 x 2160 @ 60 Hz eDP | Standard input: DC 9-36V, 90W |
| PNM-5210 | Onboard Intel Twin Lake / Alder Lake series, TDP 15W BIOS: EFI BIOS Available CPU options: N150, N305 | 1× HDMI 2.0 interface, supports 3840 × 2160 @ 60Hz | DC 9 ~ 36V wide-voltage input |
| RP7003AW | **CPU**: Intel Core 12th/13th Generation -U/-P series **BIOS**: EFI BIOS | **Interfaces**: 1 × DP 1.4; 1 × HDMI 2.0; 2 × Type-C **Optional**: 1 × LVDS / EDP (optional) | **Input**: DC 9-36V **Power rating**: 120W |
| TIM800B | Onboard Intel Core Ultra series (Meteor Lake / Arrow Lake) Configurable SKUs: 125H / 155H / 225H / 255H UEFI B | 1 × HDMI, 4K@60Hz 1 × DP, 4K@60Hz 24-bit dual-channel LVDS, 1920×1080 120Hz 1 × DP (side mount, not populated | DC 12–19V Power rating: 120W |
| TL500Z3AW | Onboard Intel 11th Generation Tiger Lake-U Series Processor EFI BIOS CPU Options: Celeron 6305U / i3-1115G4 / | 1 × HDMI 2.0 1 × LVDS (LVDS / EDP selectable, one of the two) 1 × MiniDP (DP++) Dual-channel 24-bit LVDS / HDM | DC 9-36V, 90W Copper fan heatsink |
Get A Quote
The model runs where the cameras are — that is the edge.
Send the workload, model size and site power — we’ll size the node within 24–48 hours.
