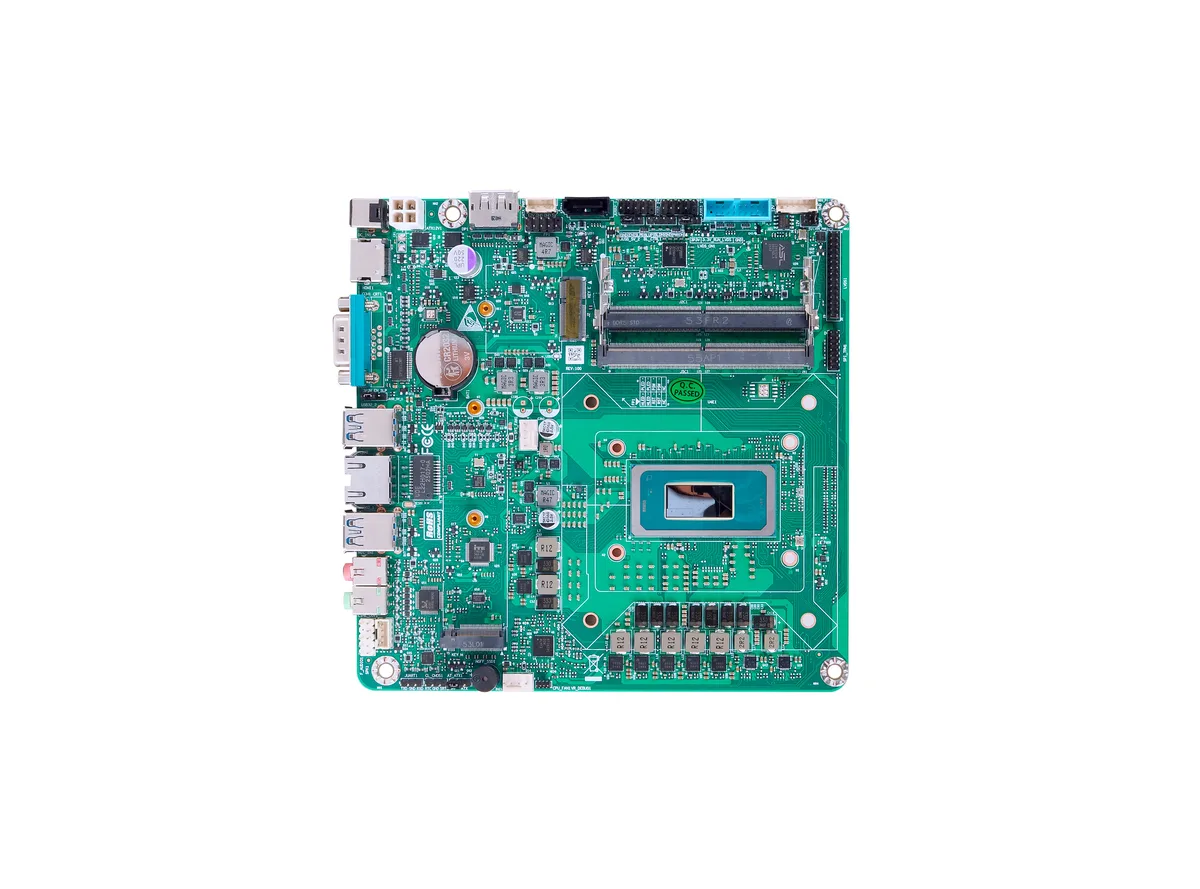

TIM800B Industrial Motherboard

Name: TIM800B Industrial Motherboard
Brand: GEOLiNK
SKU: TIM800B

Core Ultra (Meteor Lake / Arrow Lake) in a panel-first 170 × 170 mm board: DDR5-5600 up to 96 GB, LVDS at 120 Hz with a full backlight header set, and HDMI or DP at 4K60 — an enclosure-ready platform for touch panels and display-heavy kiosks.

Get a Quote Compare Mini-ITX

TIM800B · Quick Specs

CPU	Onboard Core Ultra 125H–255H
Memory	2× DDR5-5600 SO-DIMM, 96GB
Display	HDMI + DP 4K · LVDS 120Hz
Network	1× RTL8111H
Power	DC 12–19V, 120W
Temperature	−10/+60°C operating

CORE ULTRA 125H–255H · DDR5-5600 UP TO 96GB · LVDS 120HZ · BL_CTL BACKLIGHT · DC 12–19V · SAMPLE MOQ 1 PC

Why TIM800B

Four answers for panel builders

Platform

Core Ultra, four SKUs

Meteor Lake 125H/155H or Arrow Lake 225H/255H configured at order time — pick the AI-PC class headroom your workload actually needs.

Panel Control

Backlight headers, all of them

LVDS_ON/OFF, BL_CTL and LVDS_PWR pinouts on the board — dimming, power sequencing and panel kill-switch wired without a custom carrier.

Memory

DDR5-5600, 96GB ceiling

Two SO-DIMM slots at 5600MHz with up to 96GB — enough headroom for vision pipelines alongside the UI.

Power & OS

AT/ATX and triple OS

ATX 4-pin plus DC 12–19V with AT/ATX selection, and Windows 10, Windows 11 or Ubuntu on the supported list.

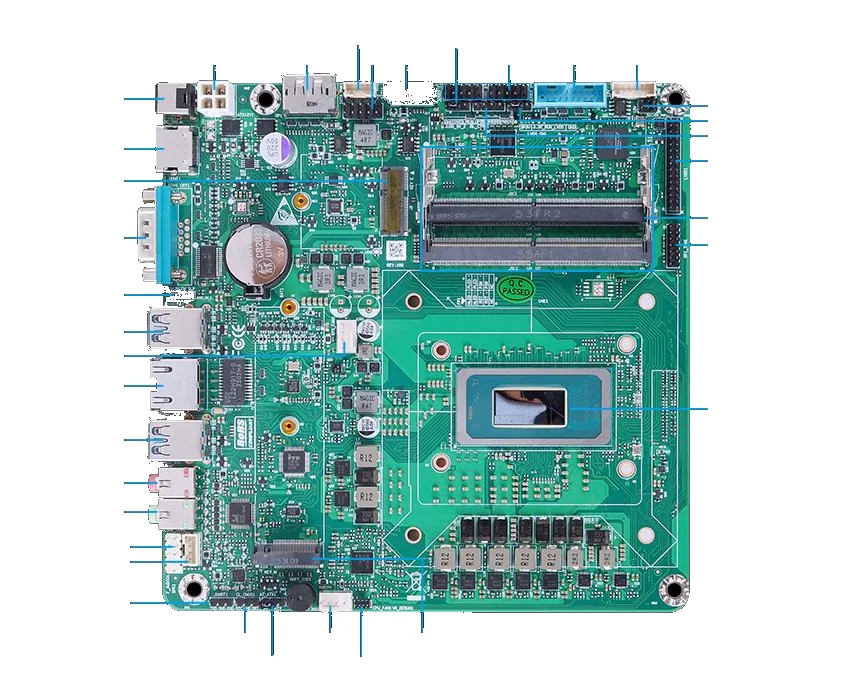

Full Specifications

Technical data

Per the TIM800B English specification (revision R110). Note the operating range: −10°C to +60°C with −20°C to +70°C storage — narrower than our wide-temp boards, so match it to your cabinet.

CPU	Onboard Intel Core Ultra · Meteor Lake / Arrow Lake · configurable 125H / 155H / 225H / 255H · UEFI BIOS
Memory	2× DDR5 SO-DIMM · 5600 MHz · up to 96 GB
Storage	1× SATA 3.0 (4-pin SATA power) · 1× M.2 2280 Key-M (SATA & NVMe auto-detecting)
Display	1× HDMI (4K@60Hz) · 1× DP (4K@60Hz) · 24-bit dual-channel LVDS 1920×1080 @120Hz · 1× DP side-mount (not populated in volume production)
Panel Headers	LVDS_ON/OFF (3-pin 2.54mm) · BL_CTL (4-pin 2.54mm) · LVDS_PWR (2×3-pin 2.0mm) · LVDS (2×15-pin 2.0mm) · LVDS_P (6-pin A2001WV-6P 2.0mm)
Rear I/O	DC JACK · HDMI · VGA / COM (DB9), selectable · 4× USB 3.0 · 1× LAN · mic in · line out
Internal Headers	2× USB 3.0 pin headers · 4× USB 2.0 pin headers (JUSB_5V voltage selection) · F_AUDIO 9-pin · speaker 4-pin (4Ω 3W) · F_PANEL · 4-pin CPU fan · 4-pin SYS fan
Power Inputs	DC 12–19V · power rating 120W · ATX 4-pin connector · 3-pin AT/ATX
Expansion	1× M.2 E-Key (PCIe + USB 2.0, WiFi/BT/CNVI) · 1× TPM_SPI header
Network	1× LAN (RTL8111H, 10/100/1000M adaptive)
Dimensions	170 × 170 mm (Mini-ITX)
Environment	−10°C to +60°C operating · 0–90% RH non-condensing · −20°C to +70°C storage
Software	Windows 10 · Windows 11 · Ubuntu

Where It Fits

Always-on panel displays

The TIM800B is built around the panel: backlight control, 120Hz LVDS and 96GB of memory for content-heavy screens that run for hours. Typical deployments:

Display walls and kiosk panels: BL_CTL and LVDS power headers give the enclosure designer direct control over backlight behavior and sequencing.
Content terminals: Core Ultra handles HTML5 signage and local media without a separate media player box.
Industrial touch systems: HDMI or DP for the main screen, LVDS 120Hz for a dedicated operator panel, Ubuntu or Windows by project preference.

Two large wall screens in a retail hallway

Configuration

Ordering options

Selectable options are configured at order time against a standard base board.

Option	Standard	Optional
CPU SKU	Core Ultra (Meteor Lake) 125H	155H · Arrow Lake 225H / 255H
Rear combo port	VGA	COM (DB9), selectable
Side DP	Not populated (volume production)	Populated per order
