Mini-ITX · 170×170 MM · R101

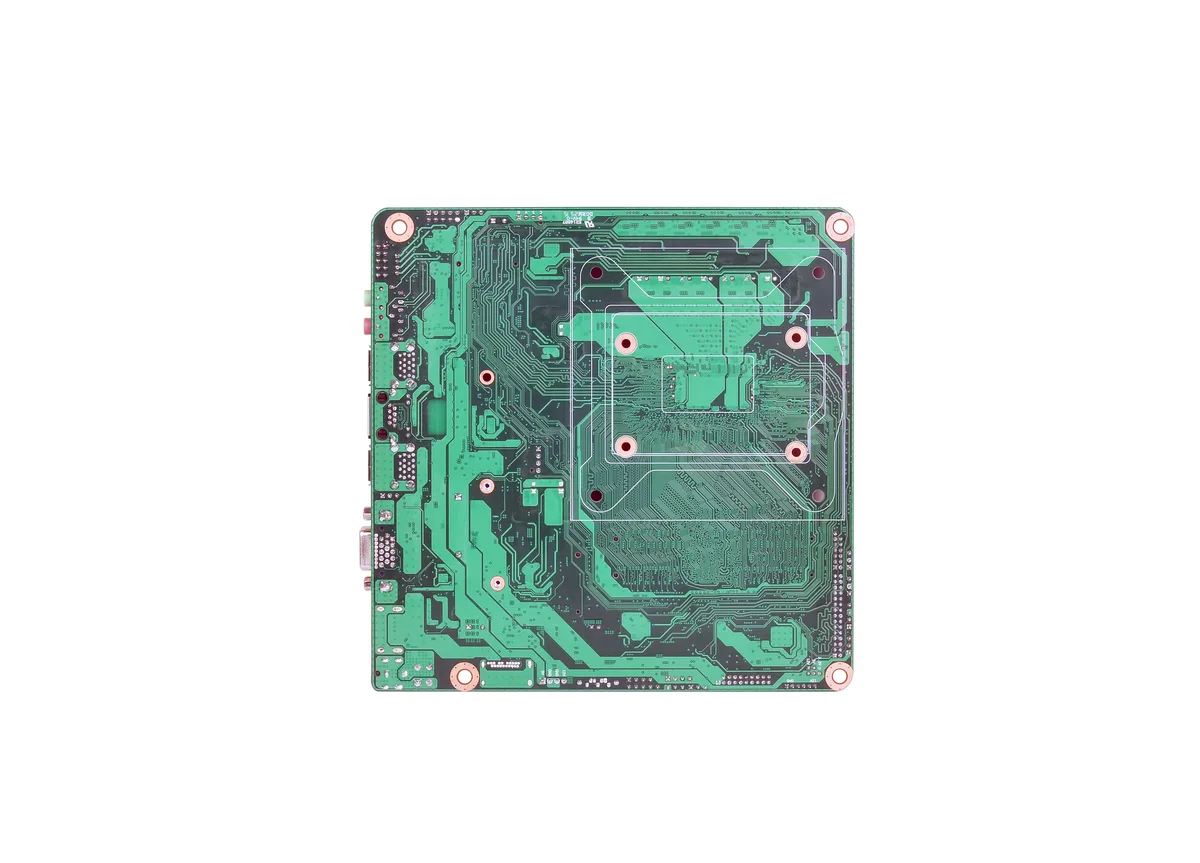

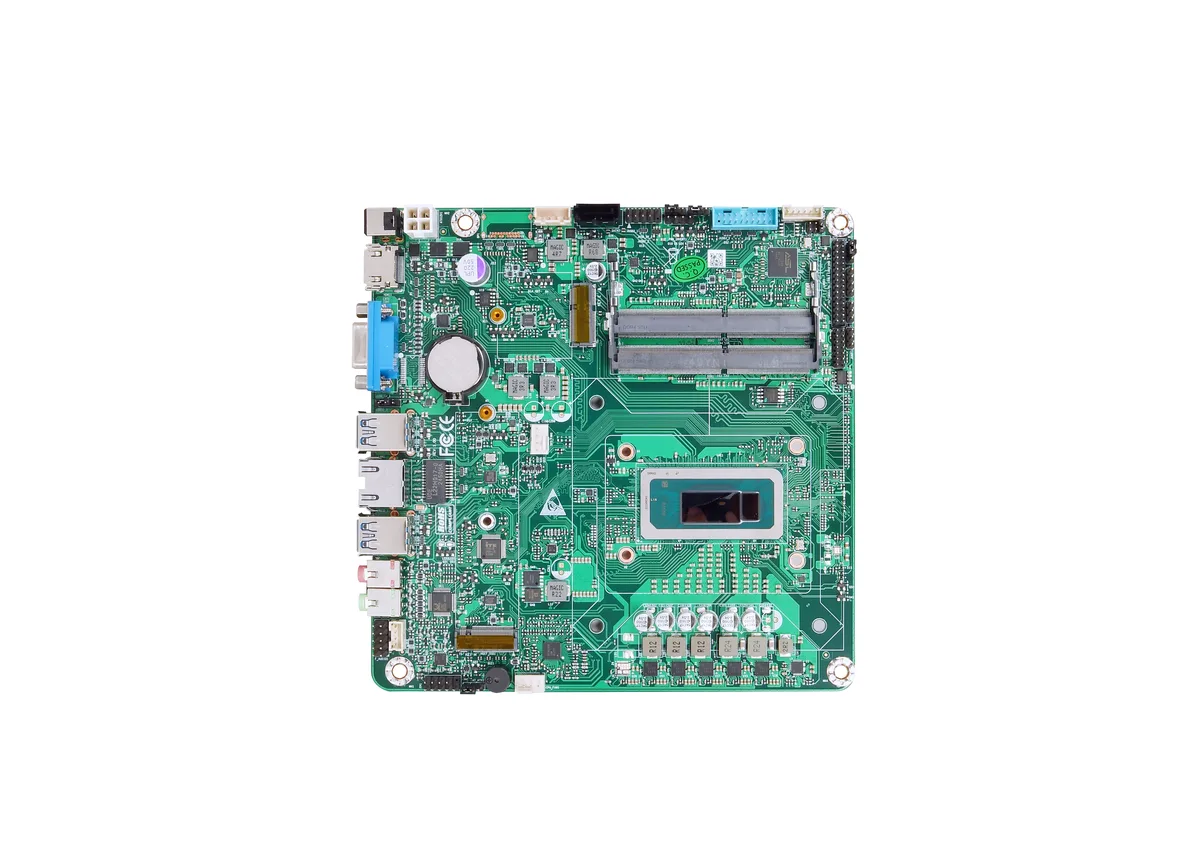

TIM600B Industrial Motherboard

Name: TIM600B Industrial Motherboard
Brand: GEOLiNK
SKU: TIM600B

An onboard Alder Lake board at 45 W with panel-first I/O: LVDS that runs 120 Hz, gravity sensing that rotates the image with the enclosure, and a one-key restore path for unattended machines — all on 170 × 170 mm.

Get a Quote Compare Mini-ITX

TIM600B · Quick Specs

CPU	Onboard Alder Lake, 45W
Memory	2× DDR4 SO-DIMM, 64GB
Display	HDMI 2.0 + VGA/DP + LVDS 120Hz
Network	1× RTL8111H
Power	DC 12–19V, 90W+
Temperature	−20/+60°C operating

ALDER LAKE 45W · LVDS 120HZ · GRAVITY SENSING · ONE-KEY RESTORE · DC 12–19V · SAMPLE MOQ 1 PC

Why TIM600B

Four tricks up its sleeve

Sensing

Gravity-aware display

Automatic landscape/portrait switching on the panel output — mount the unit any way the cabinet dictates and the picture follows.

Panel Refresh

LVDS at 120Hz

24-bit dual-channel LVDS up to 1920×1200 with 120Hz refresh — smoother HMI screens without switching panel generations.

Serviceability

One-key system restore

A restore path for field units that took a bad update — bring the machine back to a known image without a service call.

Power Flex

DC or ATX 4-pin

DC 12–19V at 90W+ for embedded rails, plus an ATX 4-pin connector when the system already carries an ATX supply.

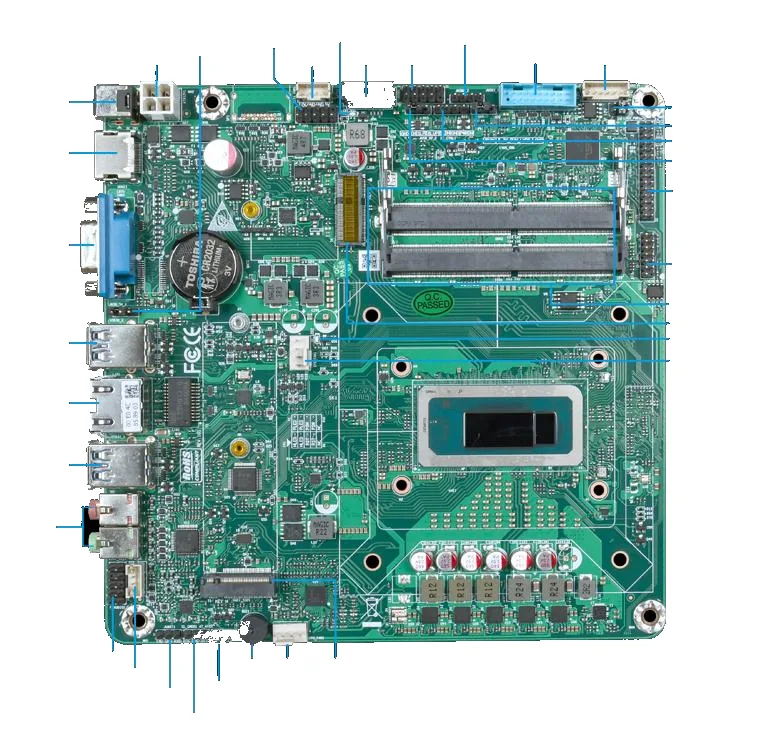

Full Specifications

Technical data

Per the TIM600B English specification card (revision R101). Values follow the card exactly; selectable pairs are noted as such.

CPU	Onboard Intel Alder Lake · TDP 45W · optional SKU i5-12450H
Memory	2× DDR4 SO-DIMM · up to 64 GB
Storage	1× SATA 3.0 (4-pin SATA power) · 1× M.2 2280 (PCIe 4.0 x4 NVMe / SATA auto-adaptive)
Display	1× HDMI 2.0 (4K@60Hz) · VGA / DP 1.4 (4K@60Hz), selectable · 24-bit dual-channel LVDS 1920×1200 · eDP 4K@60Hz (LVDS or eDP, selectable) · LVDS 120Hz supported
Rear I/O	DC JACK · HDMI · VGA / COM (DB9), selectable · 4× USB 3.0 · 1× LAN · mic in · line out
Internal Headers	1× USB 3.0 header · 3× USB 2.0 headers (JUSB_5V voltage selection) · F_AUDIO 9-pin · speaker 4-pin (4Ω 3W) · F_PANEL · MON SW · LVDS OFF jumper · 6-pin LVDS power · 4-pin CPU fan · 4-pin SYS fan
Power Inputs	DC 12–19V, 90W and above (per application) · ATX 4-pin power connector · 3-pin AT/ATX
Expansion	1× M.2 E-Key (PCIe + USB 2.0, WiFi/BT/CNVI) · 1× TPM_SPI header · 1× DP side-mount (not populated in volume production)
Network	1× LAN (RTL8111H)
Other Features	Gravity sensing · automatic landscape/portrait switching · one-key system restoration · LVDS 120Hz display
Dimensions / Weight	170 × 170 mm · 230 g (excluding heatsink)
Environment	−20°C to +60°C operating · humidity 5–90% · −40°C to +85°C storage
Software	Windows 11 · Windows 10 · Linux

Where It Fits

HMI screens and automation cells

The TIM600B is an HMI-first board: panel connectors outnumber everything else, and the extras serve machines that run with no one watching. Typical deployments:

Operator HMI panels: LVDS or eDP straight to the front panel, gravity sensing if the console can be mounted either way.
Automation cells: 45W Alder Lake for local visualization and control, ATX 4-pin input when the cabinet already feeds 12V to the rest of the gear.
Embedded integration: one-key restore and watchdog-friendly AT/ATX behavior reduce field visits on long-lived equipment.

Factory automation line with control panels

Configuration

Ordering options

Selectable options are configured at order time against a standard base board.

Option	Standard	Optional
CPU SKU	Alder Lake standard 45W	Intel Alder Lake i5-12450H
Video out	VGA	DP 1.4 (4K@60Hz), selectable
Panel out	24-bit dual-channel LVDS (1920×1200)	eDP 4K@60Hz, selectable
Rear combo port	VGA	COM (DB9), selectable
